YOU WILL BE CONTACTED WITH A FREIGHT QUOTE BEFORE SHIPPING

*You may also pickup to forego the shipping costs - please contact customercare@ngstillco.com

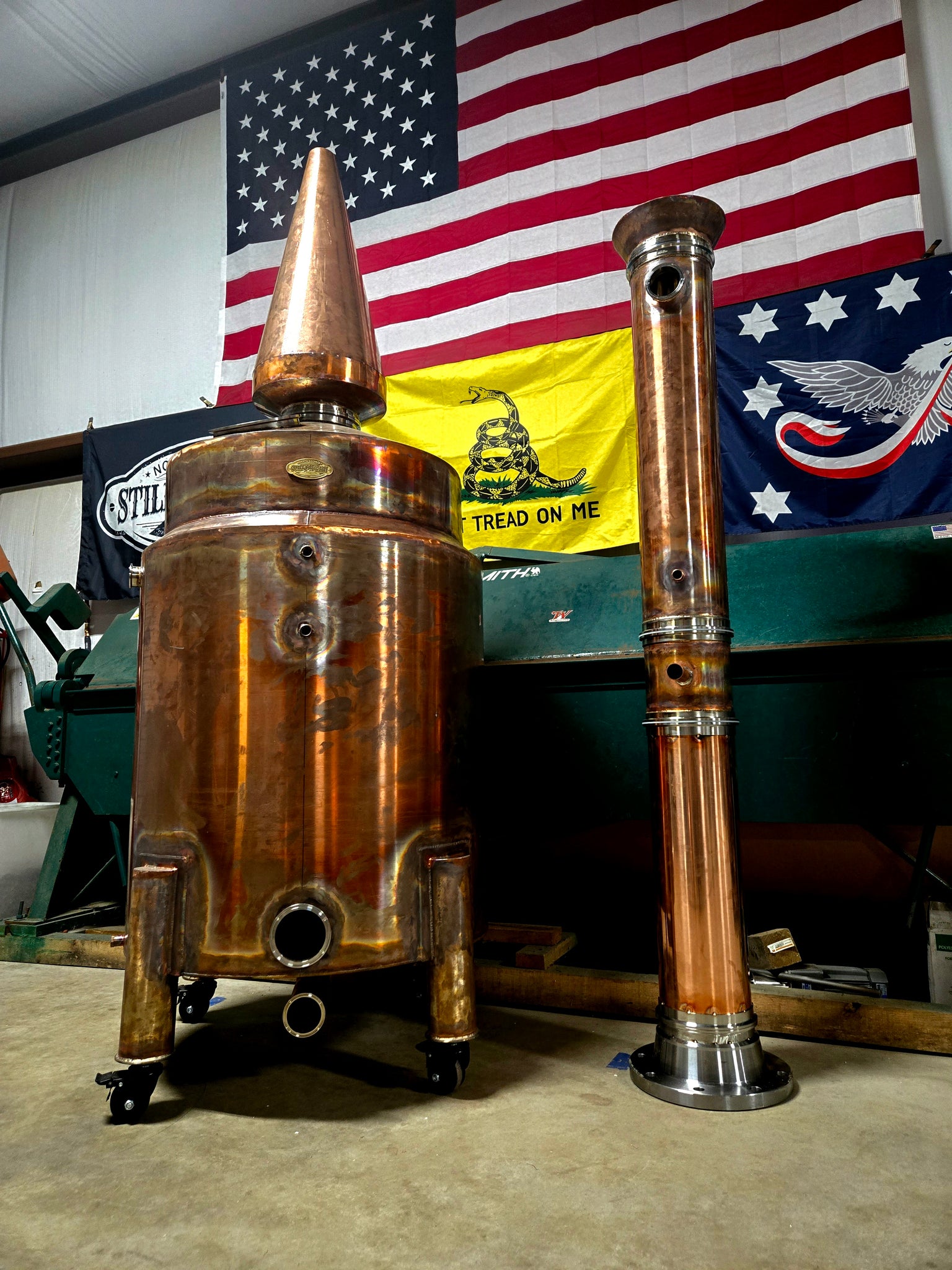

It's finally here! We have been working tirelessly to bring our jacketed stills to market. Our jacketed / Bain Marie style stills are tig welded for extra durability. The meticulous design and large jacket make for an extremely efficient still, while allowing the distiller to run on the grain (or fruit)! This allows the distiller to pull tons of extra flavor into the distillate, while making life easy. No more straining, sweating, and cussing trying to separate all your solids! The jacket only requires a little water and it's off to the races.

Old school style meets modern technique. This still provides the best of both worlds. Traditional Pot Still and Reflux Still! The offset column allows for the still to keep a traditional cap (contributing unique flavors and characteristics). With the turn of a valve, it can be turned from pot still mode to reflux mode. This setup is designed to be great for almost any spirit type- from whiskey, brandy, and rum to gins and vodka style spirits. This system does it all.

DIMENSIONS:

APPROXIMATE-

Height of still and cap- 70"

Height of column- 97.5"

Height of condenser- 75"

Height of condenser output- 34"

Height of output if using parrot- 32"

Height of output if using parrot drain- 20"

Length- 72"

Footprint needed- 84" wide x 48" deep x 100" tall

CAPACITY:

29 Gallon Still
4 Plate Offset Reflux Column
6" x 24" Shotgun Condenser

STILL:

Made with 1/16" copper walls & 1/8" copper bottom
33" diameter x 70" tall
Conical bottom allows complete and easy draining of inner pot
2” tri clamp drain
Custom "Large Conehead" cap with temperature gauge
Vacuum pressure relief valve & 5 PSI pressure relief valve in jacket
Vacuum pressure relief valve & 5 PSI pressure relief valve in pot
1-3/8" OD (1-1/4" ID) Lyne Arm & Plumbing
3-Way Valve Bypass System (Pot Still Mode or Reflux Mode)
Pressure gauge in jacket
6" fill port with sight glass on the cone
4" agitator port on cone
4" liquid level sight glass in jacket
(1) 2" electric ports in jacket
1/2" threaded drain in jacket
Built in legs with heavy duty casters (wheels)

REFLUX COLUMN:

4" Diameter
4 Bubble Plates
4" x 6" Deflag
Reflux Return Line
Stainless/Copper Flanged Stand

SHOTGUN CONDENSER:

Made with 32 oz/18 gauge & 1/16" copper
6" diameter x 24" tall
(13) 1/2" ID inner pipes (26' total)
Stainless/Copper Flanged Stand
3/4" threaded garden hose water ports
Detachable Proofing Parrot

OTHER SPECS:

Completely piped with tri clamp ferrules for easy breakdown

EXPECTED OUTPUT:

ABV (alcohol by volume) of mash between 10% to 20% = 2.9 to 5.8 gallons

WHAT MAKES AN NGSC STILL

The massive vapor cones allow excellent head space. 6-inch diameter access Tri Clamp Cap alleviates the need for traditional flour paste. It is the largest TCC in the industry installed on hobby stills. The opening in the collar of the still is large enough to give easy access to your still pot for cleaning. The top of the collar is rolled over to give you a nice smooth edge, promote safety against cuts and add strength. Bodies have beads rolled into them, allowing for a robust, & beautiful still. Bottoms are designed to hold the weight of your wash. With double thick bottom seams, our stills can support over double the weight you will load them with.

The condenser comes standard with water inlets and outlets to cycle cold water, which allows your shine to cool down more efficiently. It is designed to be used with a hose, or a water pump.

All tubing/pipe is deburred and chamfered to allow your fittings to connect without hassle.

Something often overlooked: the seams! We put thick, beautiful seams on all of our equipment. Our craftsmanship is what you expect in a high quality still.

Attention:

Do not use this product before reading and understanding the instructions. Your instructions will be under the first set of flaps as you open your still. (Refer to set-up video for a visual). You can also find a copy of these instructions and all other resources by clicking on the Resources tab. If you cannot find the instructions, or do not understand them, contact us immediately.

Improper use can cause injuries to the operator and damage to your equipment. Improper use may void any or all manufacturer warranties.

*Electric systems can take 4-6 weeks to ship depending on stock availability and are ordered when we start building the still*

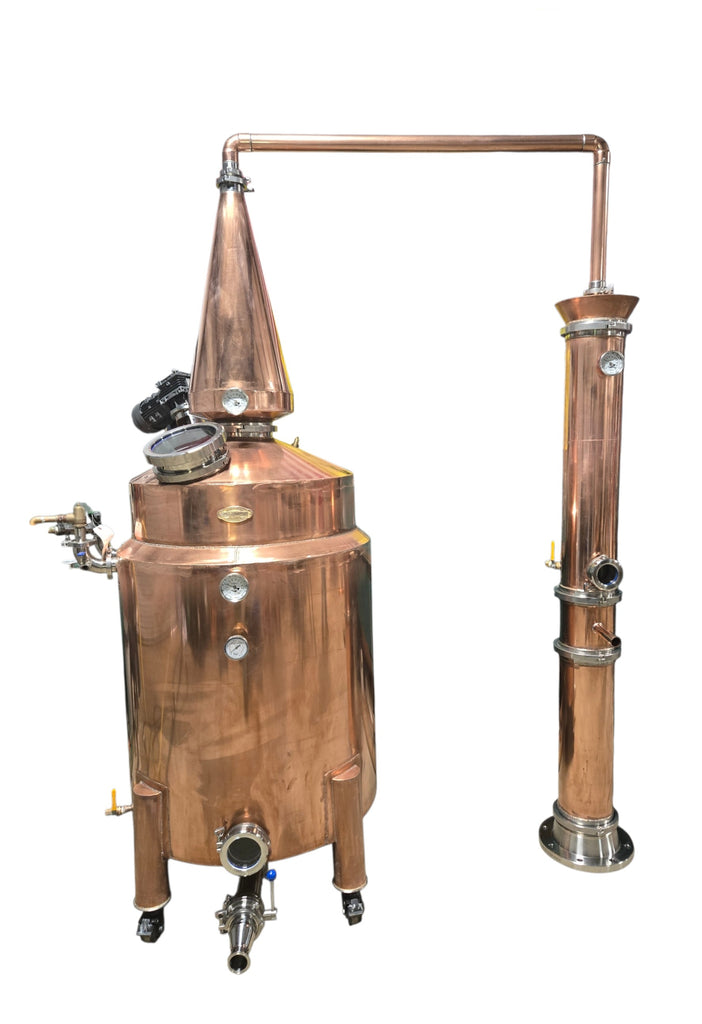

120 Gallon Bain Marie Jacketed Still w/ Shotgun Condenser
