AS OF 5/19/25 - COMES STANDARD WITH 32 OZ, FILL PORT ON CONE & SIGHT GLASS ON THUMPER

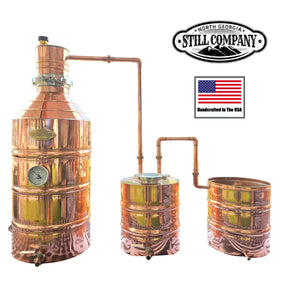

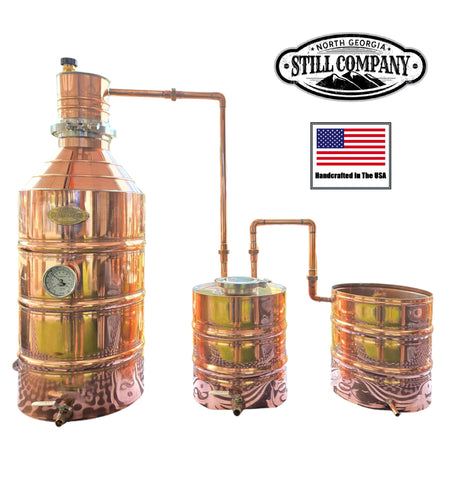

CAPACITY:

Fat 15 Gallon Still
5 Gallon Thumper
Fat 10 Gallon Worm

STILL:

Made with 32 oz/18 gauge copper
16.5” diameter x 34” tall
1/2” ball valve drain
Temperature gauge
Tri clamp cap (6" diameter)
1-3/8” OD (1-1/4" ID) lyne arm throughout
Temperature gauge, vacuum pressure relief valve & fast-acting pressure relief valve in cap
4" fill port with sight glass on vapor cone

THUMPER:

11.5" diameter x 12" tall
Made with 20 oz/22 gauge copper
6” fruit port with sight glass
1/2" ball valve drain
Temperature gauge
1-3/8" OD (1-1/4" ID) inlet and outlet

WORM:

Made with 32 oz/18 gauge gauge copper
20 ft 5/8" OD (1/2" ID) worm coil
Built in 3/4" threaded garden hose fittings for water ports
Valve on bottom threaded port
Barbed fittings on top and bottom threaded water ports

OTHER SPECS:

Completely piped with tri clamp ferrules
Thumper output tapers down to 5/8" OD (1/2" ID) worm coil
3 thermometers
Submersible water pump
10 ft clear vinyl tubing

EXPECTED OUTPUT

ABV (alcohol by volume) of mash between 10% to 20% = 1.5-3 gallons

WHAT MAKES AN NGSC STILL

The massive vapor cones allow excellent head space. 6-inch diameter Tri Clamp Cap alleviates the need for traditional flour paste. It is the largest TCC in the industry installed on hobby stills. The opening in the collar of the still is large enough to give easy access to your still pot for cleaning. The top of the collar is rolled over to give you a nice smooth edge, promote safety against cuts and add strength. Bodies have beads rolled into them, allowing for a robust, & beautiful still. A ½ inch NTP thermometer port is installed center mass of the still body, cap, and thumper. This allows you to get an accurate reading of your wash temperature and vapors with your thermometer installed. Bottoms are designed to hold the weight of your wash. With double thick bottom seams, our stills can support over double the weight you will load them with.

The worm condenser comes standard with water inlets and outlets to cycle cold water in the can, which allows your shine to cool down more efficiently. The worm coil has 20 foot of 5/8 OD copper tubing. It is designed to be used with a hose, or a water pump. The top of the worm is rolled over to give you a nice smooth edge, promote safety against cuts and add strength.

The thumper’s inlet runs all the way to the bottom. It is then cut at a 45-degree angle, with flutes cut into it to maximize effectiveness. The outlet barely protrudes into the top of the thump keg, allowing the vapors to escape with ease, keeping pressure to a minimum. 4 Inch fruit port on top makes it easy to add fruit or other ingredients in the thumper to infuse flavors into your shine.

All tubing is deburred and chamfered to allow your fittings to connect without hassle.

The still and thumper have ball valve drain ports installed for easy drainage after your run.

Something often overlooked: the seams! We put thick, beautiful seams on all of our equipment. Our solder work is what you expect in a high quality still.

Attention:

Do not use this product before reading and understanding the instructions. Your instructions will be under the first set of flaps as you open your still. (Refer to set-up video for a visual). You can also find a copy of these instructions and all other resources by clicking on the Resources tab. If you cannot find the instructions, or do not understand them, contact us immediately.

Improper use can cause injuries to the operator and damage to your equipment. Improper use may void any or all manufacturer warranties.

*Electric systems can take 4-6 weeks to ship depending on stock availability and are ordered when we start building the still*
