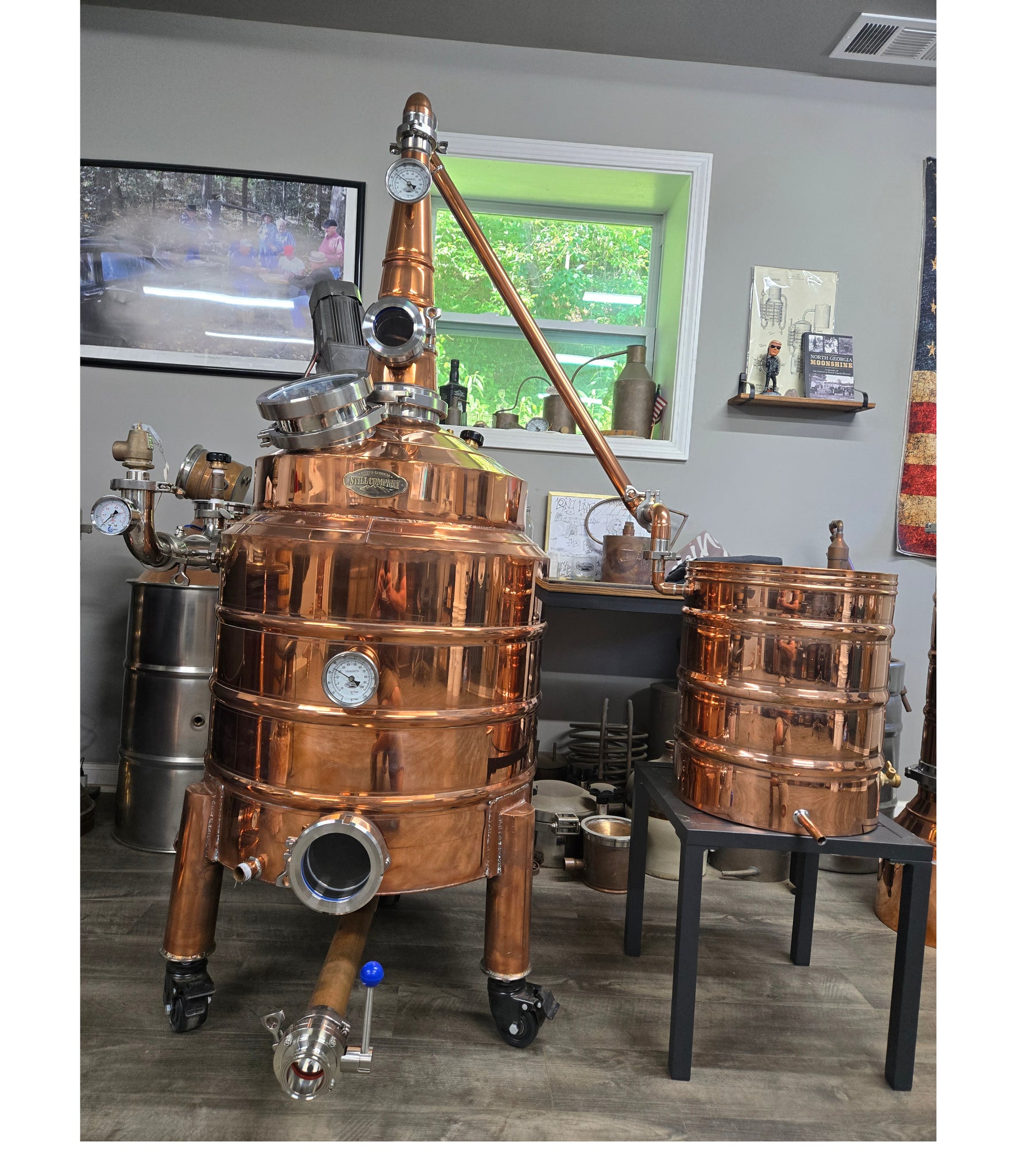

27 Gallon Bain Marie Jacketed Still w/ Worm
YOU WILL BE CONTACTED WITH A FREIGHT QUOTE BEFORE SHIPPING
*You may also pickup to forego the shipping costs - please contact customercare@ngstillco.com
CAPACITY:
- 27 Gallon Still
- 12 Gallon Worm
STILL:
- Made with 1/16" copper walls & 1/8" copper bottom
- 24” diameter x 67" tall
- Conical bottom allows complete and easy draining of inner pot
- 2” tri clamp drain
- "Small Conehead" cap with temperature gauge
- Vacuum pressure relief valve & 5 PSI pressure relief valve in jacket
- Vacuum pressure relief valve & 5 PSI pressure relief valve in pot
- Adjustable 1-3/8” OD (1-1/4" ID) lyne arm
- Temperature gauge in jacket
- 6" fill port with sight glass on the cone
- 4" agitator port on cone
- 4" liquid level sight glass in jacket
- 2" electric port in jacket
- 1/2" threaded drain in jacket
- Pressure gauge in jacket
- Built in legs with heavy duty casters (wheels)
12 GALLON WORM:
- Made with 32 oz/18 gauge copper
- 5/8" OD (1/2" ID) Worm Coil
- 3/4" threaded garden hose water ports
- Valve on bottom threaded port
- Barbed fittings on top and bottom threaded ports
OTHER SPECS:
- Completely piped with tri clamp ferrules for breakdown
- Adjustable lyne arm allows the condenser to be set at any height
- 2 thermometers
EXPECTED OUTPUT:
- ABV (alcohol by volume) of mash between 10% to 20% = 2.7 to 5.4 gallons
It's finally here! We have been working tirelessly to bring our jacketed stills to market. Our jacketed / Bain Marie style stills are tig welded for extra durability. The meticulous design and large jacket make for an extremely efficient still, while allowing the distiller to run on the grain (or fruit)! This allows the distiller to pull tons of extra flavor into the distillate, while making life easy. No more straining, sweating, and cussing trying to separate all your solids! The jacket only requires a little water and it's off to the races.
WHAT MAKES AN NGSC STILL
The massive vapor cones allow excellent head space. 6-inch diameter access Tri Clamp Cap alleviates the need for traditional flour paste. It is the largest TCC in the industry installed on hobby stills. The opening in the collar of the still is large enough to give easy access to your still pot for cleaning. The top of the collar is rolled over to give you a nice smooth edge, promote safety against cuts and add strength. Bodies have beads rolled into them, allowing for a robust, & beautiful still. Bottoms are designed to hold the weight of your wash. With double thick bottom seams, our stills can support over double the weight you will load them with.
The condenser comes standard with water inlets and outlets to cycle cold water, which allows your shine to cool down more efficiently. It is designed to be used with a hose, or a water pump.
All tubing/pipe is deburred and chamfered to allow your fittings to connect without hassle.
Something often overlooked: the seams! We put thick, beautiful seams on all of our equipment. Our craftsmanship is what you expect in a high quality still.
Attention:
Do not use this product before reading and understanding the instructions. Your instructions will be under the first set of flaps as you open your still. (Refer to set-up video for a visual). You can also find a copy of these instructions and all other resources by clicking on the Resources tab. If you cannot find the instructions, or do not understand them, contact us immediately.
Improper use can cause injuries to the operator and damage to your equipment. Improper use may void any or all manufacturer warranties.
*Electric systems can take 4-6 weeks to ship depending on stock availability and are ordered when we start building the still*
