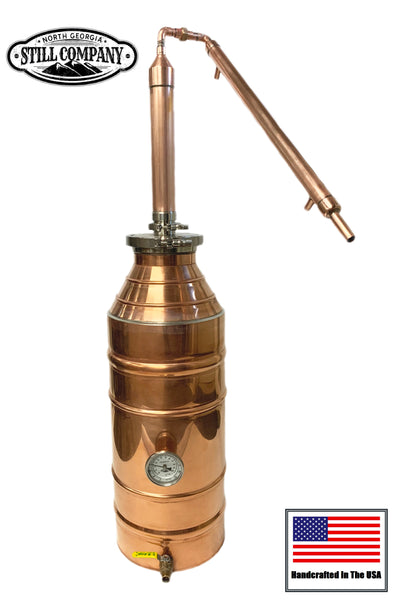

10 Gallon Still w/ 2" Pot Still Head & Condenser
If you're looking for a high quality still at an affordable price, look no further!
Great still for beginners. Perfect for making whiskey, rum, brandy, etc.
CAPACITY
- 10 Gallon Still

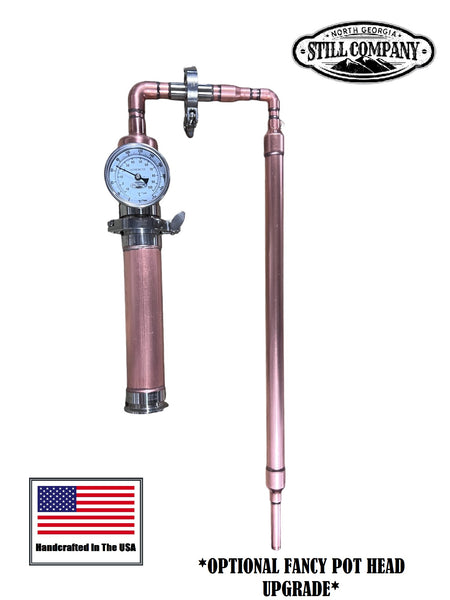

- 2" Pot Still Head
- Liebig Condenser
SPECS:
- Made with 20 oz/22 gauge copper
- 11.5” diameter x 47” tall
- 1/2” ball valve drain
- Temperature gauge
- Tri clamp collar (6" diameter)
- 6" x 2" tri clamp adapter
- 2" x 15" pot still head
- Liebig condenser - 24" long (1-1/8" OD jacket over 5/8" OD pipe)
- Theremometer x1
EXPECTED OUTPUT
- ABV (alcohol by volume) of mash between 10% to 20% = 1-2 gallons
WHAT MAKES AN NGSC STILL
The massive vapor cones allow excellent head space. 6-inch diameter Tri Clamp Collar is large enough to give easy access to your still pot for cleaning. The top of the collar is rolled over to give you a nice smooth edge, promote safety against cuts and add strength. Bodies have beads rolled into them, allowing for a robust, & beautiful still. A ½ inch NTP thermometer port is installed center mass of the still body, cap, and thumper. This allows you to get an accurate reading of your wash and vapor temperature with your thermometer installed. Bottoms are designed to hold the weight of your wash. With double thick bottom seams, our stills can support over double the weight you will load them with.
The still has a ball valve drain ports installed for easy drainage after your run.
Something often overlooked: the seams! We put thick, beautiful seams on all of our equipment. Our solder work is what you expect in a high quality still.
Attention:
Do not use this product before reading and understanding the instructions. Your instructions will be under the first set of flaps as you open your still. (Refer to set-up video for a visual). You can also find a copy of these instructions and all other resources by clicking on the Resources tab. If you cannot find the instructions, or do not understand them, contact us immediately.
Improper use can cause injuries to the operator and damage to your equipment. Improper use may void any or all manufacturer warranties.
